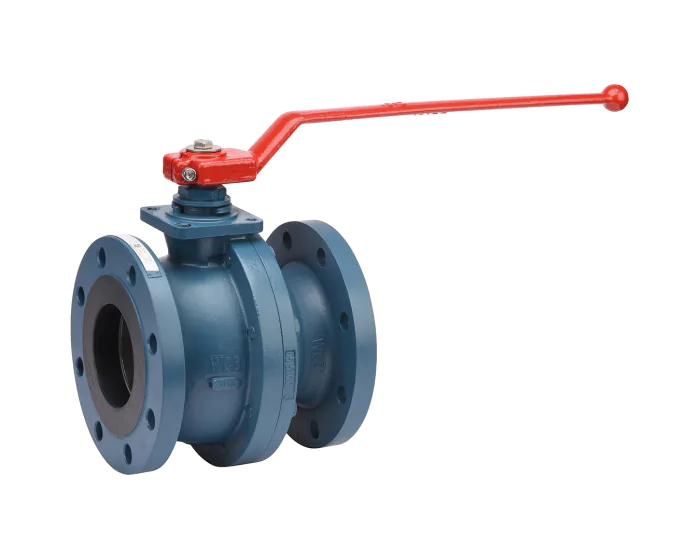

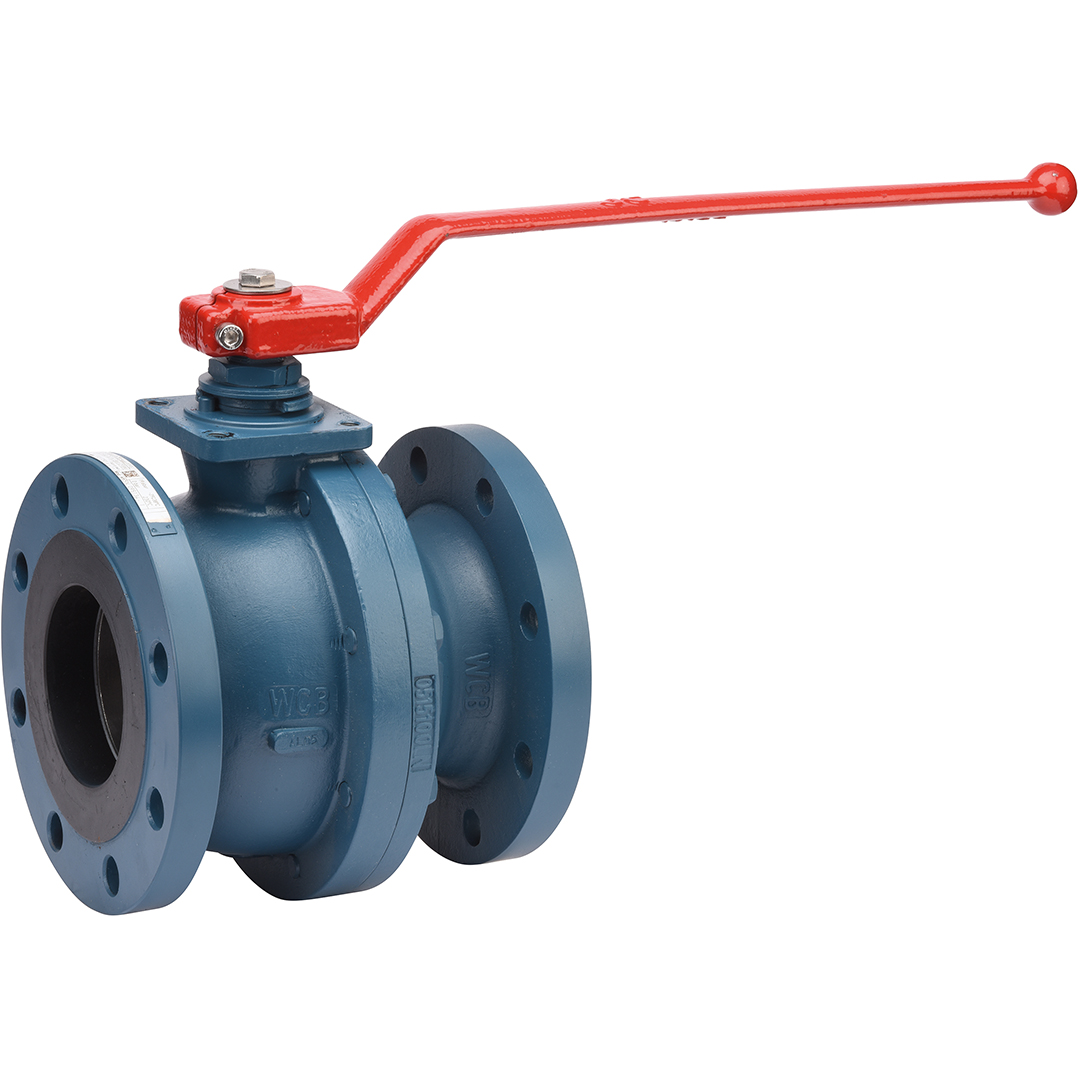

The Sferaco 540AIGF series ball valve, 2-piece body in steel with glass-filled PTFE seat, PN40 flanged attachment, JC range, DIN short, fire safety certified, ATEX zone compatible for chemicals.
| Specification | Value |
|---|---|
| DN inches NPS | 2''1/2 |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - EN 12516 |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 27 |
| DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| Square, star (mm) | MEP M22x16 |
| ATEX compatible | Yes |
| Torque (Nm) | 76 |
| DN | DN65 - 2''1/2 |
| Face to Face (mm) | 170.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 550 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE-Glass |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Main product colour | Blue |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN65 - 2''1/2 | 516AIGF065 | S1006876 |
€485.61
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 516AIGF080 | S1006877 |
€640.64
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 516AIGF100 | S1006878 |
€931.00
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN125 - 5'' | 516AIGF125 | S1006879 |
€1,529.76
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 516AIGF150 | S1006880 |
€2,213.01
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8'' | 516AIGF200 | S1006881 |
€4,278.07
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN250 - 10'' | 516AIGF250 | S1006882 |
€8,587.91
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN300 - 12'' | 516AIGF300 | S1006883 |
€13,525.19
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 540AIGF015 | S1006884 |
€176.17
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 540AIGF020 | S1006885 |
€204.83
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 540AIGF025 | S1006886 |
€220.14
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN32 - 1''1/4 | 540AIGF032 | S1006887 |
€293.50
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 540AIGF040 | S1006888 |
€311.10
(excl. btw)
|
add to cart |
| Flanged PN10/16 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 540AIGF050 | S1006889 |
€373.51
(excl. btw)
|
add to cart |
